Linear response TD-OFDFT TutorialsΒΆ
This tutorial shows how to run Casida TD-OFDFT calculations with DFTpy. It uses the same setup as the companion Real time TD-OFDFT tutorial (save the RT traces / td_ofdft_rt_reference.h5 there if you want to compare spectra here). You will learn:
How to run Casida TD-OFDFT calculations
First we need to load the necesary modules
[18]:
import numpy as np
import matplotlib.pyplot as plt
import matplotlib as mpl
mpl.rcParams.update(
{
"font.family": "serif",
"font.serif": ["Times New Roman", "Times", "DejaVu Serif"],
"font.size": 14,
"axes.titlesize": 16,
"axes.labelsize": 15,
"xtick.labelsize": 14,
"ytick.labelsize": 14,
"legend.fontsize": 14,
"axes.unicode_minus": False,
}
)
from dftpy.grid import DirectGrid
from dftpy.field import DirectField
from dftpy.functional import Functional, TotalFunctional
from dftpy.optimization import Optimization
from dftpy.constants import LEN_CONV, ENERGY_CONV
from dftpy.formats.vasp import read_POSCAR
from dftpy.td.hamiltonian import Hamiltonian
# Load the Casida modules
from dftpy.td.casida import Casida
from dftpy.td.interface import CasidaRunner
from dftpy.td.hamiltonian import Hamiltonian
Set up the systems and the initial density
[2]:
DATA='../DATA/'
structure_file = DATA+'Mg8.vasp'
atoms = read_POSCAR(structure_file, names=['Mg'])
PP_list = {'Mg':DATA+'Mg_OEPP_PZ.UPF'}
nr = [36, 36, 32]
grid = DirectGrid(atoms.cell, nr)
nelec = 16
rho_ini = np.ones(nr)
rho_ini = DirectField(grid=grid, griddata_3d=rho_ini)
rho_ini = rho_ini / rho_ini.integral() * nelec
Build the total energy density functional and get the ground state density
[3]:
ke = Functional(type='KEDF',name='TFvW')
xc = Functional(type='XC',name='LDA', libxc=False)
hartree = Functional(type='HARTREE')
pseudo = Functional(type='PSEUDO', grid=grid, ions=atoms, PP_list=PP_list)
totalfunctional = TotalFunctional(KineticEnergyFunctional=ke,
XCFunctional=xc,
HARTREE=hartree,
PSEUDO=pseudo
)
optimization_options = {'econv' : 1e-10 * nelec,
'maxfun' : 50,
'maxiter' : 100}
opt = Optimization(EnergyEvaluator=totalfunctional, optimization_options = optimization_options,
optimization_method = 'TN')
rho0 = opt.optimize_rho(guess_rho=rho_ini)
setting key: Mg -> ../DATA/Mg_OEPP_PZ.UPF
Step Energy(a.u.) dE dP Nd Nls Time(s)
0 8.951916882520E+00 8.951917E+00 2.343046E+00 1 1 2.489614E-02
!WARN: Change to steepest decent
1 -4.970850195117E+00 -1.392277E+01 1.121758E+00 1 3 5.590415E-02
2 -5.991894332924E+00 -1.021044E+00 1.516348E-01 4 2 9.531522E-02
3 -6.128065576848E+00 -1.361712E-01 1.802917E-02 8 3 1.328633E-01
4 -6.143827137693E+00 -1.576156E-02 3.111792E-03 10 3 1.782541E-01
5 -6.146022421154E+00 -2.195283E-03 3.902247E-04 7 3 2.148213E-01
6 -6.146449721223E+00 -4.273001E-04 4.586828E-05 10 3 2.616313E-01
7 -6.146493566939E+00 -4.384572E-05 6.805825E-06 7 3 2.967911E-01
8 -6.146501643512E+00 -8.076573E-06 7.727337E-07 10 2 3.360162E-01
9 -6.146502268766E+00 -6.252545E-07 1.062330E-07 7 3 3.697093E-01
10 -6.146502350816E+00 -8.204981E-08 1.158942E-08 9 2 4.079611E-01
11 -6.146502359965E+00 -9.148524E-09 1.779616E-09 8 3 4.453881E-01
12 -6.146502361806E+00 -1.841606E-09 2.793301E-10 9 3 4.856284E-01
13 -6.146502362096E+00 -2.892584E-10 7.062214E-11 8 3 5.267513E-01
14 -6.146502362161E+00 -6.586731E-11 3.935713E-11 11 3 5.811613E-01
#### Density Optimization Converged ####
Chemical potential (a.u.): -0.12885029478146545
Chemical potential (eV) : -3.5061951106519684
[4]:
ke.options.update({'y':0}) # Remove the von Weizsacker term since the laplacian is included in the Hamiltonian
totalfunctional = TotalFunctional(KEDF=ke, XC=xc, HARTREE=hartree, PSEUDO=pseudo)
To build the casida matrix we get the orbitals from the hamiltonian of the orbital free DFT system
\[\underbrace{\left[-\frac{1}{2} \nabla^2 + v_B(n_0) \right]}_{\hat{H}_B}\phi(\vec{r})= \mu \phi(\vec{r})\]
The diagonalization of the hamiltonian will lead to a set of eigenfunctions \(\{\phi(\vec{r})\}\) where the eigenfunction with lowest energy is the ground state density and yields the ground state density \(n_0(\vec{r}) = |\phi_0(\vec{r})|\)
[5]:
numeig = 150
potential = totalfunctional(rho0, calcType={'V'}).potential
hamiltonian = Hamiltonian(potential)
eigs, psi_list = hamiltonian.diagonalize(numeig)
totalfunctional.UpdateFunctional(keysToRemove=['HARTREE', 'PSEUDO'])
Once we get the eigenfunctions we can build the Casida matrix in the following way
\[\sum_j \left[ \delta_{ij} \omega_{ij}^2 + 2 \sqrt{\omega_{ij}} K_{ij,i'j'} \sqrt{\omega_{j'k'}} \right] F_{j'k'} = \Omega^2 F_{ik}\]
Where \(K_{ij,i'j'}\) is refer as the soupling matrix and has the following form
\[K_{ij,j'k'}(\Omega) = \int d^3r \int d^3r' \phi_{ji}(\mathbf{r}) f_{{PHxc}}(\mathbf{r},\mathbf{r}',\Omega) \phi_{j'i'}^*(\mathbf{r}')\]
[41]:
casida = Casida(rho0, totalfunctional)
casida.build_matrix(numeig, eigs, psi_list, build_ab=True)
omega, f, x_minus_y_list = casida()
Postprocess the oscillator strengths to plo the optical spectra
[42]:
def gauss(freq,omega,sigma):
return np.exp(- (freq - omega * 27.2114) ** 2 / 2.0 / sigma)/np.sqrt(2.0*np.pi)/sigma
def smooth(f, omega, sigma):
s=np.zeros_like(freq)
for i in range(0,len(omega)):
s += gauss(freq,omega[i],sigma) * f[i]
return s
def get_spectra_lr(f, omega, sigma):
slr = smooth(f, omega, sigma)
return slr
[43]:
freq = np.linspace(0, 200, 78540)
sof_lr = get_spectra_lr(f, omega, sigma=0.01)
Read the data from the Real time TD-OFDFT tutorial and compare with the Linear response results
[ ]:
import h5py
from pathlib import Path
from dftpy.td.utils import calc_spectra_mu
from dftpy.constants import Units
with h5py.File(Path("td_ofdft_rt_reference.h5"), "r") as f:
t_rt = f["runner2/t"][:]
dmu_rt = f["runner2/dipole"][:, 0]
interval = float(f["meta/interval"][()])
kick = float(f["meta/k"][()])
omega_rt, spectra_rt = calc_spectra_mu(dmu_rt, interval, kick=kick, sigma=1e-5)

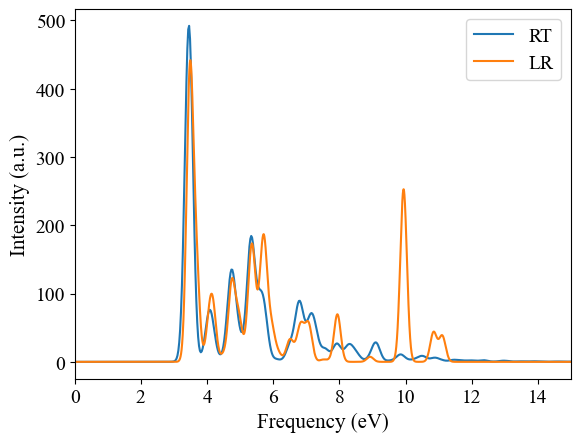

Plot the optical spectra from both methods
[50]:
plt.plot(omega_rt * Units.Ha, spectra_rt, label='RT')
plt.plot(freq, sof_lr*3, label='LR')
plt.xlim(0,15)
plt.legend()
plt.xlabel('Frequency (eV)')
plt.ylabel('Intensity (a.u.)')
[50]:
Text(0, 0.5, 'Intensity (a.u.)')
